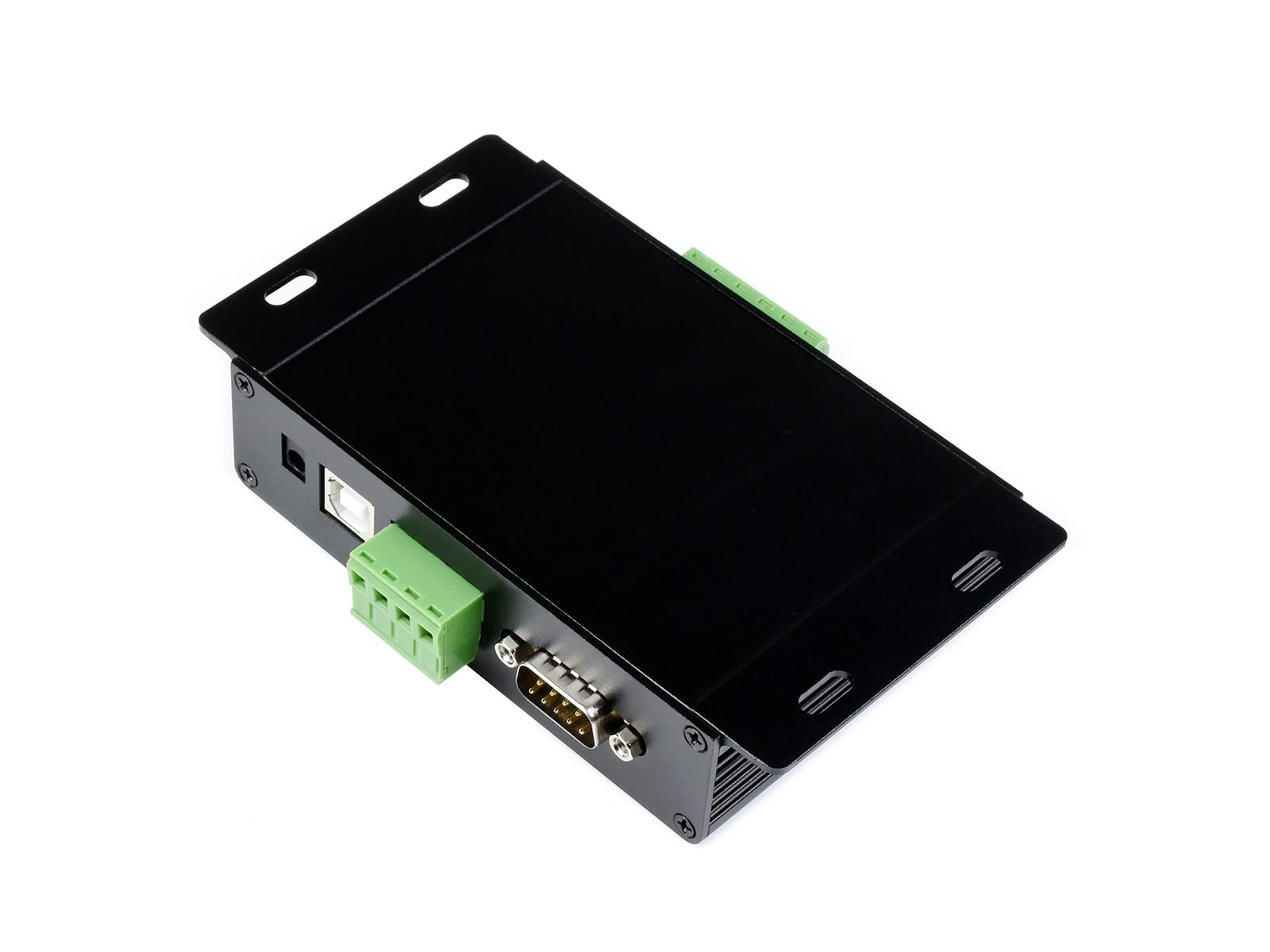

Waveshare Industrial USB / RS232 / TTL to RS232 / 485 / TTL Isolated Multi-Bus Converter Adapter Module Adopts Original FT232RL for USB Communication Support Windows 11/10 / 8.1/8 / 7 / XP

Dispositivi compatibili: PC, computer portatili
Usi specifici del prodotto: Controllo industriale
Colore: argento
Marchio: Waveshare
Numero di porte: 1

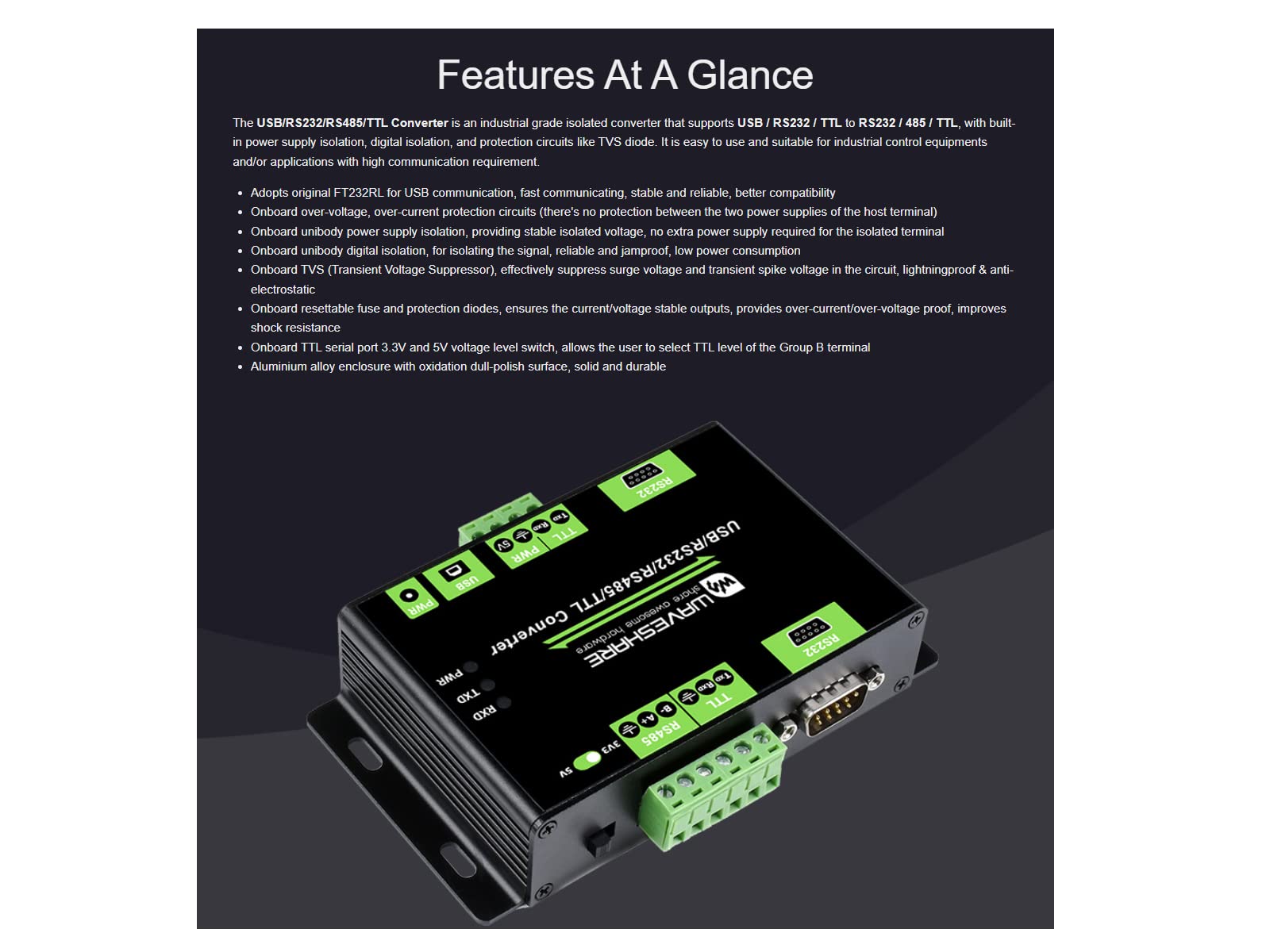

- Adopts original FT232RL for USB communication, fast communicating, stable and reliable, better compatibility
- Onboard over-voltage, over-current protection circuits (there's no protection between the two power supplies of the host terminal).Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
- Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption.Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance.Onboard TTL serial port 3.3V and 5V voltage level switch, allows the user to select TTL level of the Group B terminal

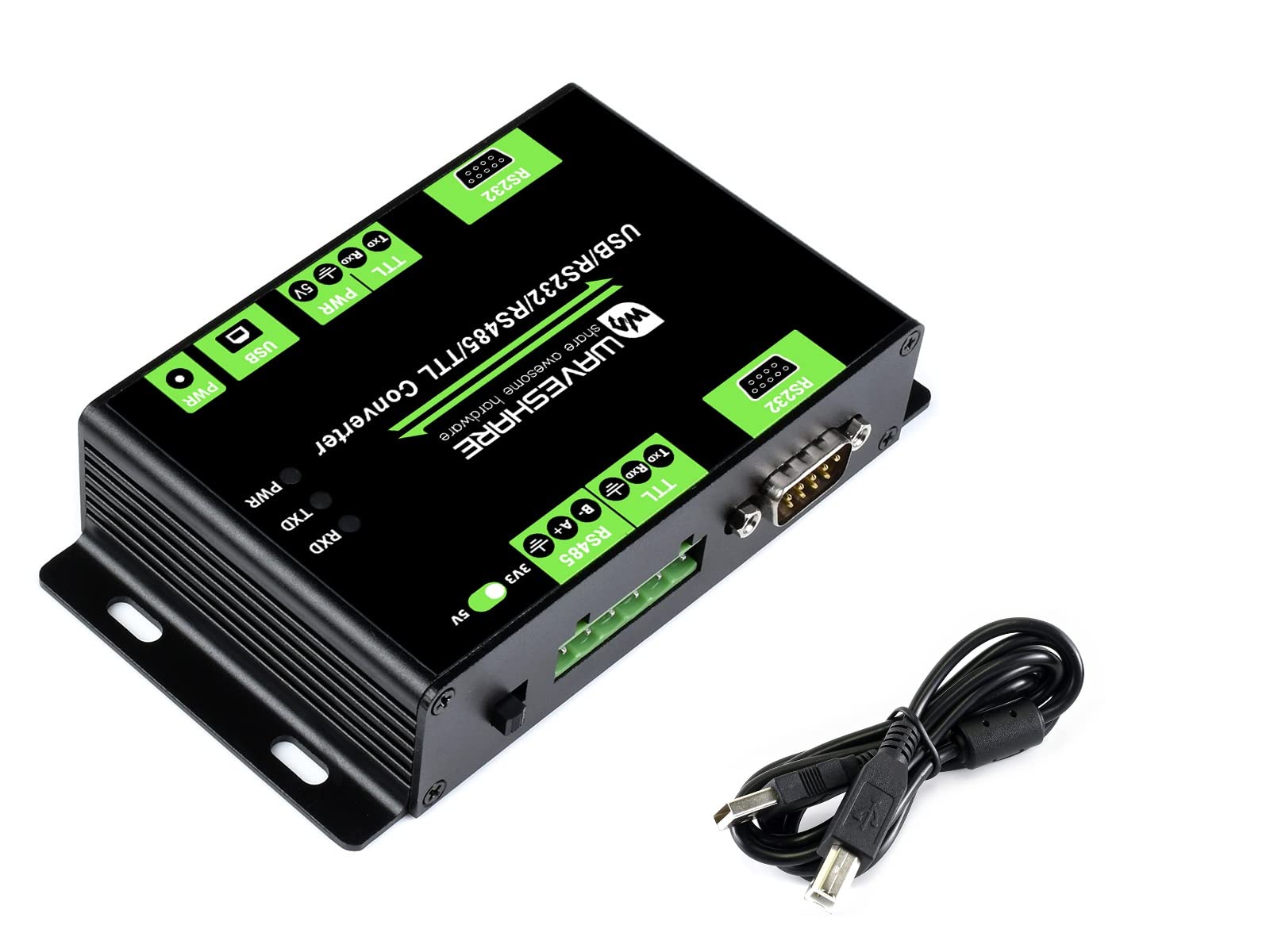

- Aluminium alloy enclosure with oxidation dull-polish surface, solid and durable
