Waveshare ESP32-S3 Development Board, 32-Bit LX7 Dual-Core Processor, Integrates GC9A01 Display Driver Chip, With 1.28inch IPS Round LCD, 240×240 Resolution, Supports WiFi

Marchio: Waveshare
Dispositivi compatibili: Mouse, PC, Stampante, Tastiera
Tecnologia memoria RAM: SRAM
Processori compatibili: ESP32-S3
Tipo di chipset: Xtensa LX7
Velocità di clock della memoria: 240 MHz
Piattaforma: Windows
Nome modello: ESP32-S3
Modello CPU: Athlon
Capacità della memoria: 18 MB

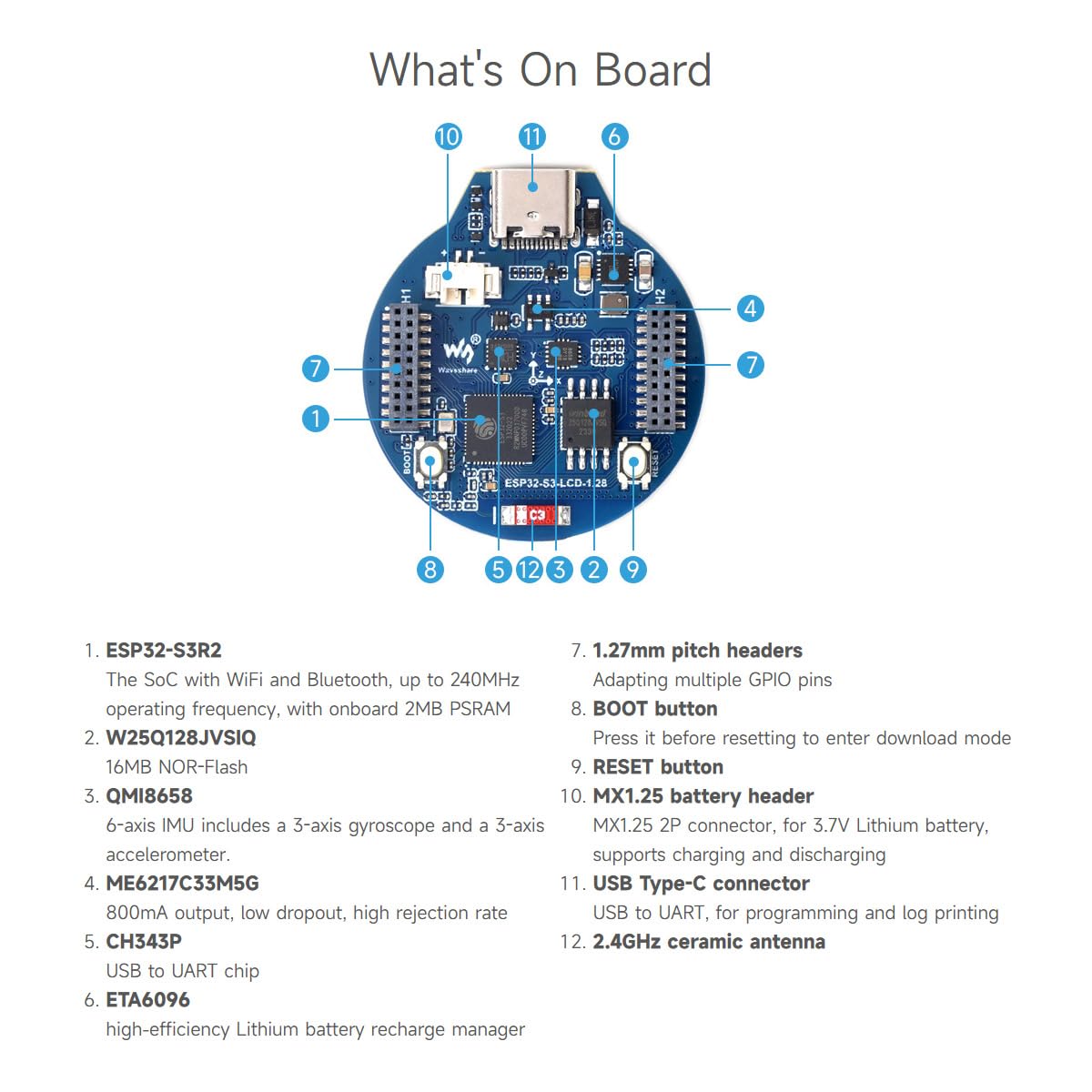

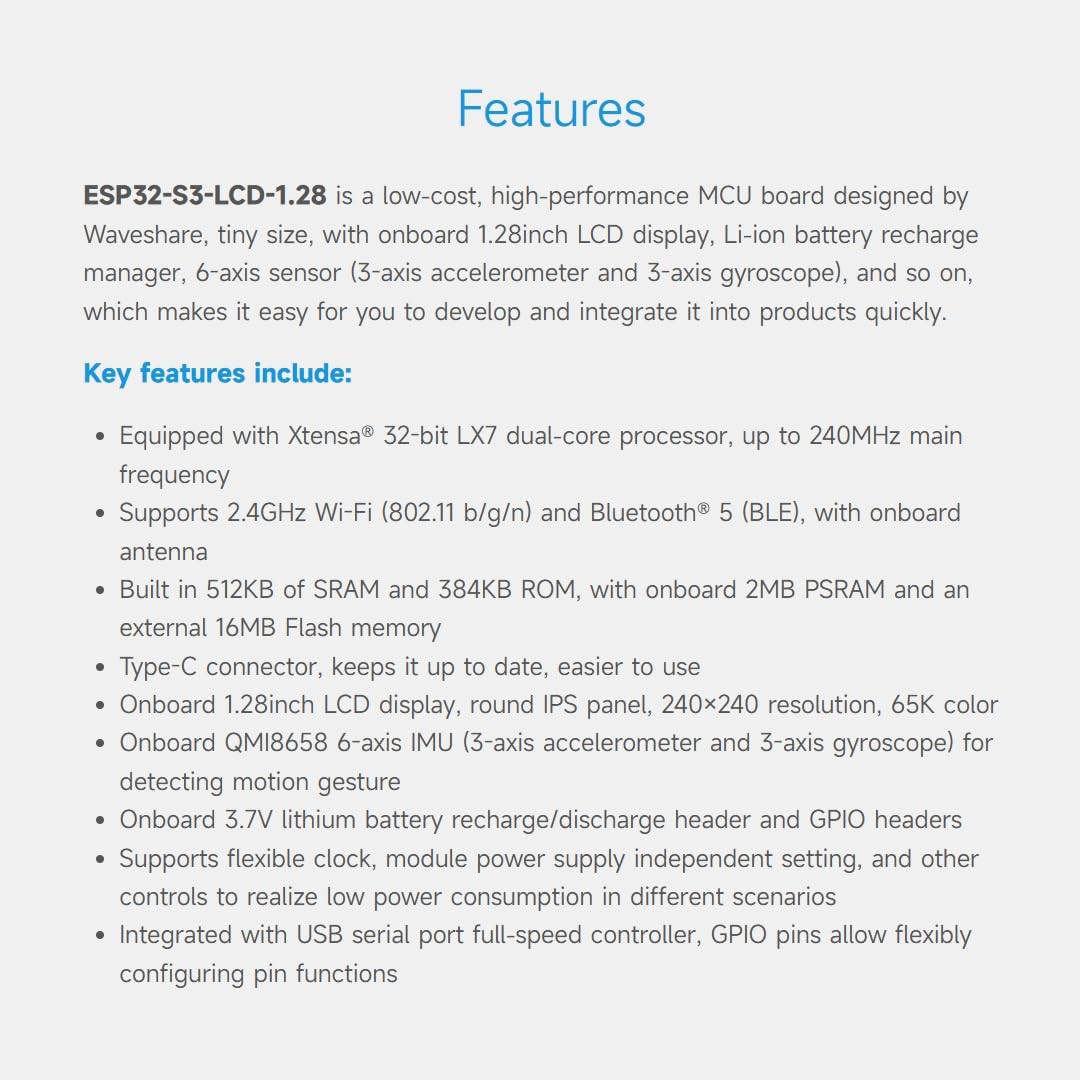

- Equipped with Xtensa庐 32-bit LX7 dual-core processor, up to 240MHz main frequency. Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and BT5 (BLE), with onboard antenna. Type-C connector, keeps it up to date, easier to use

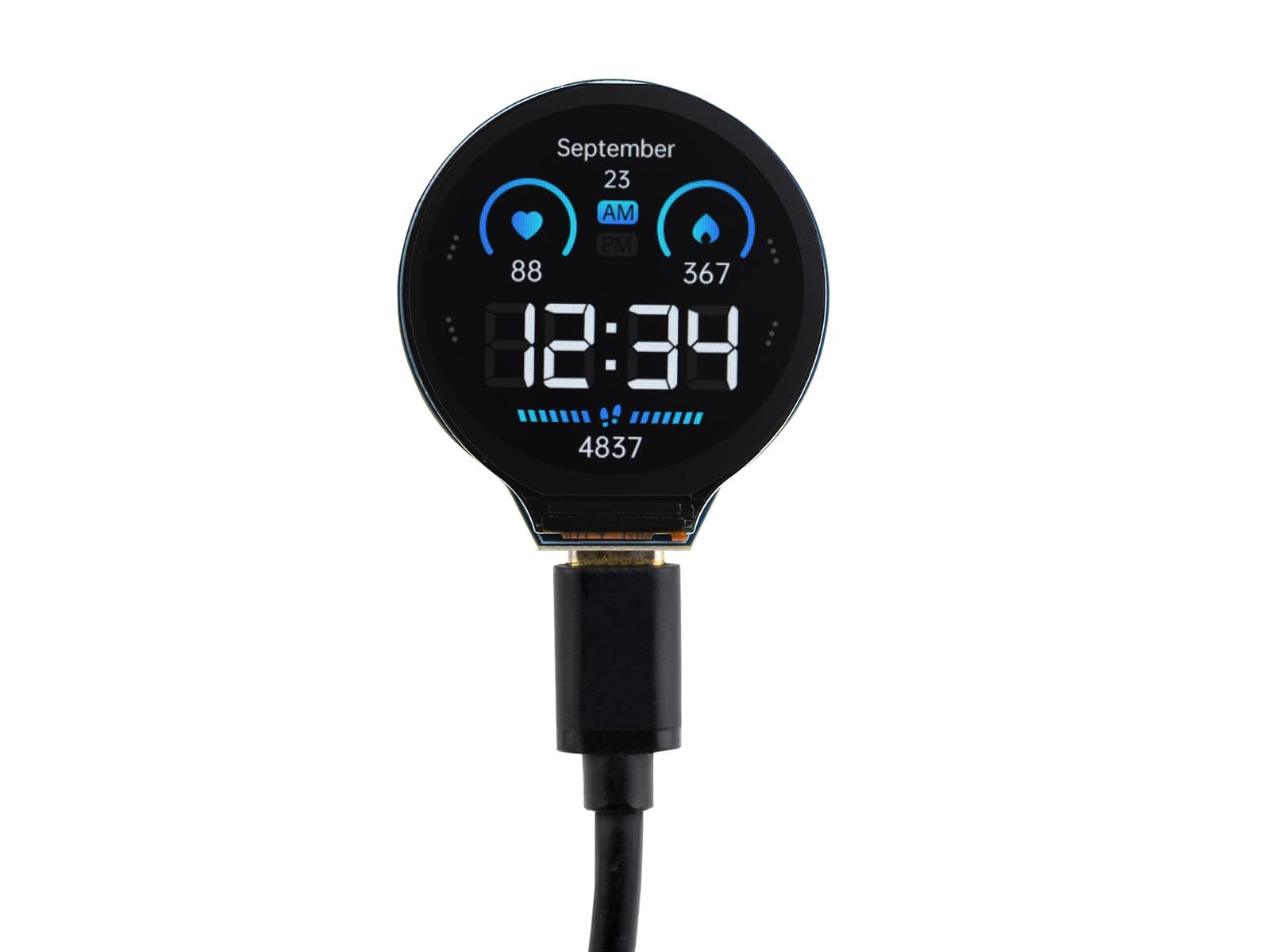

- Onboard 1.28inch LCD display, round IPS panel, 240x240 resolution, 65K color. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture. Onboard 3.7V lithium battery recharge/discharge header and GPIO headers
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

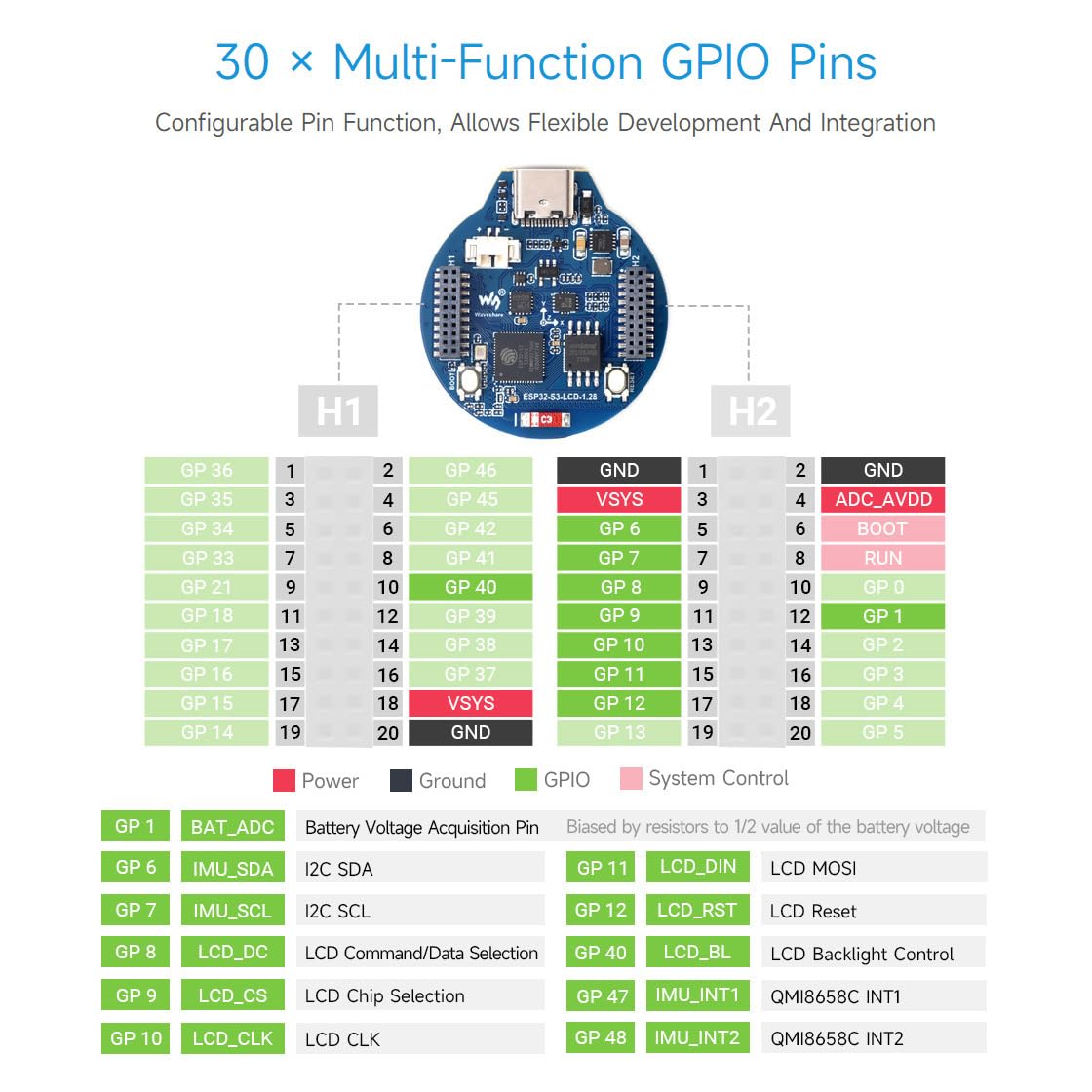

- Integrated with USB serial port full-speed controller, GPIO pins allow flexibly configuring pin functions
