SJRC 12 Bay NAS Motherboard Mini ITX, Core Ultra 5-125H Mainboard with 4x 10GbE 5GbE 2.5GbE LAN, PCIe x8 Slot, USB4 40Gbps, vPro, DDR5 BareBone, 3x 4-SATA Cables

Marchio: SJRC
Tecnologia memoria RAM: DDR5
Tipo di chipset: SoC
Velocità di clock della memoria: 2800 MHz
Piattaforma: Nessun sistema operativo
Nome modello: SJ-NAS
Modello CPU: Mobile CPU
Tipo di connettore di alimentazione principale: 24 pin
Interfaccia scheda video: Integrato
Slot di memoria disponibili: 2

- Powerful Core Ultra 5 125H AI processor: adopting hybrid architecture with 14 cores and 18 threads. It delivers balanced high performance and low power consumption via intelligent thread scheduling. Integrated Arc 7-Xe iGPU and dedicated NPU(Int8) up to 11 TOPS, perfectly for virtualization, intelligent NAS and diverse AI workloads, compatible with the latest NAS chassis

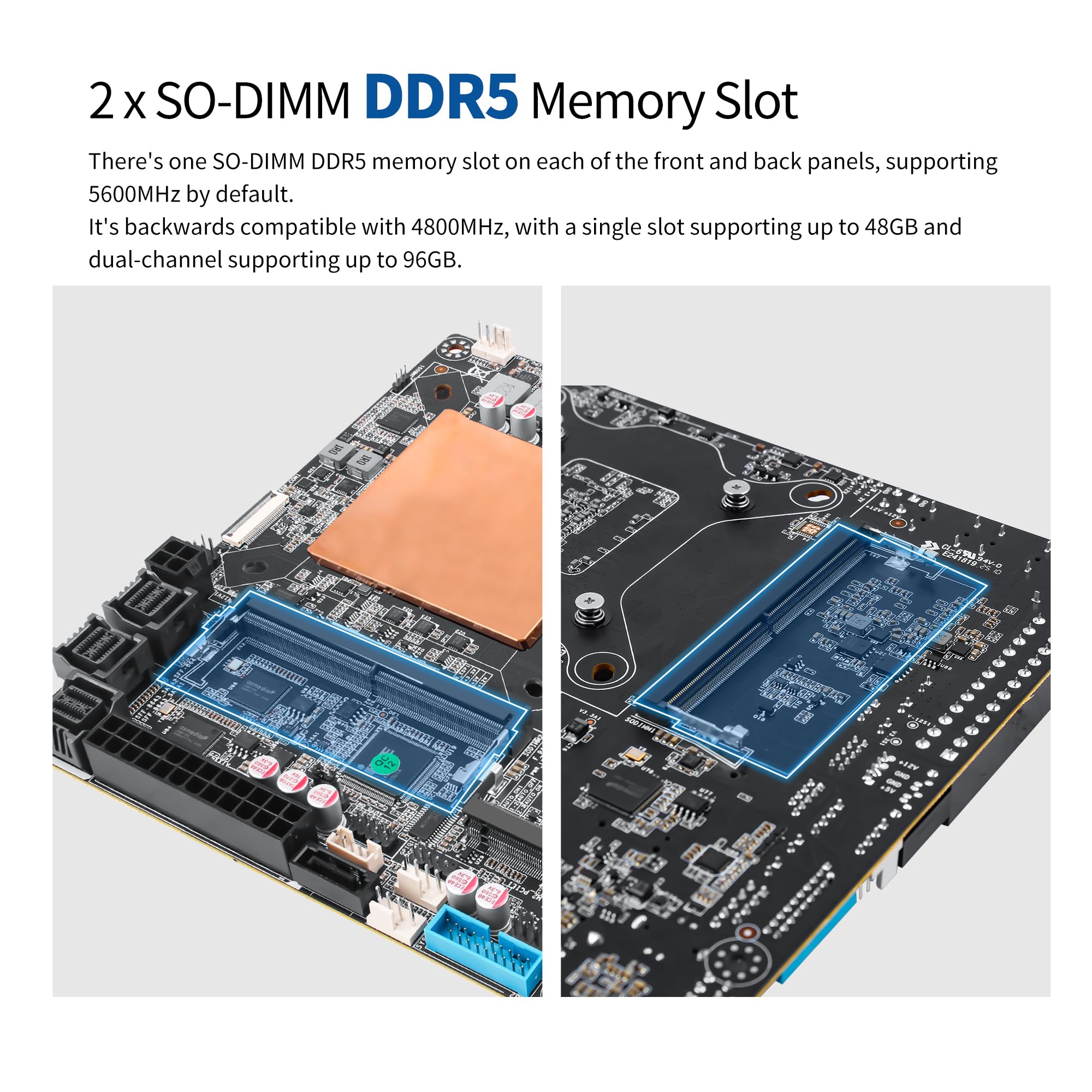

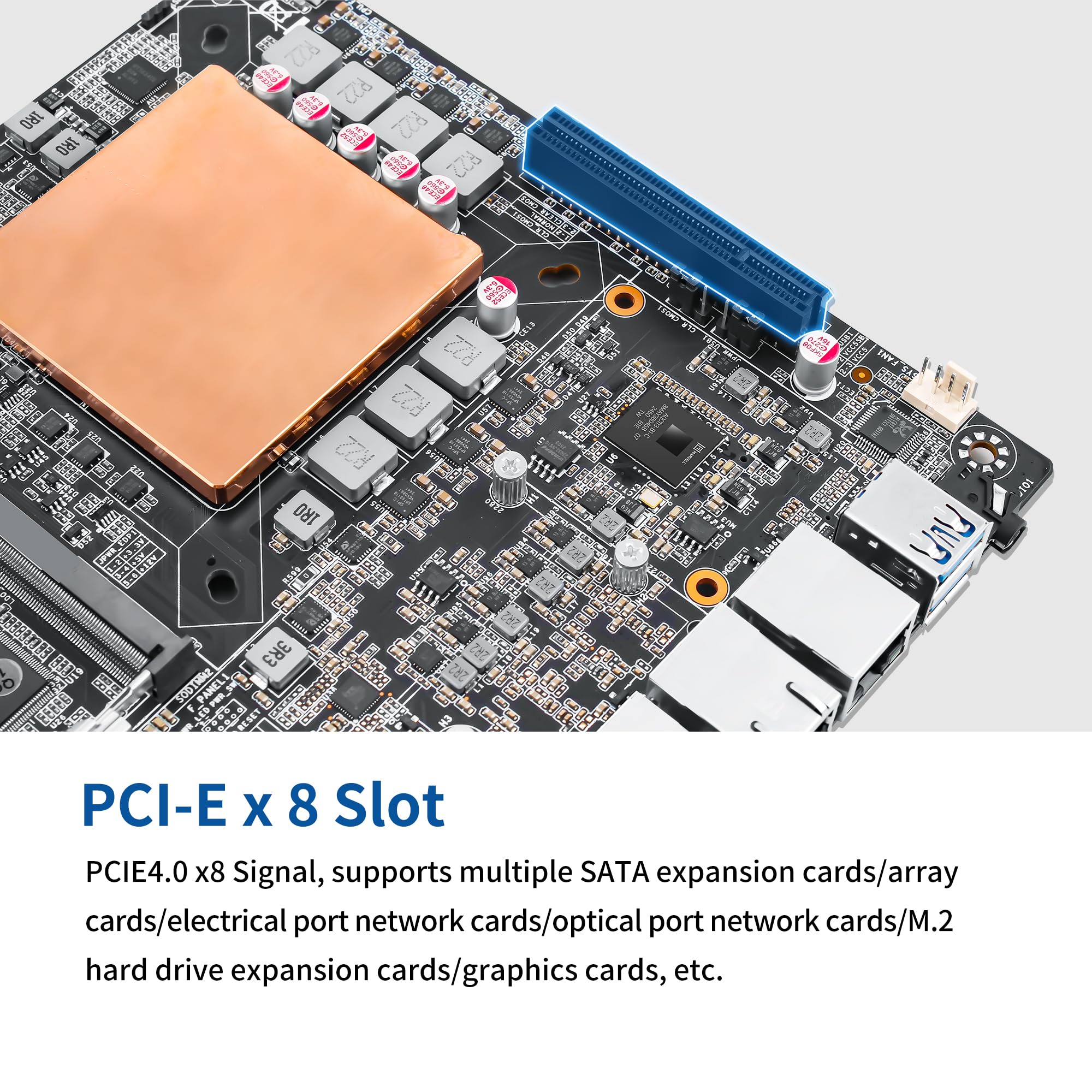

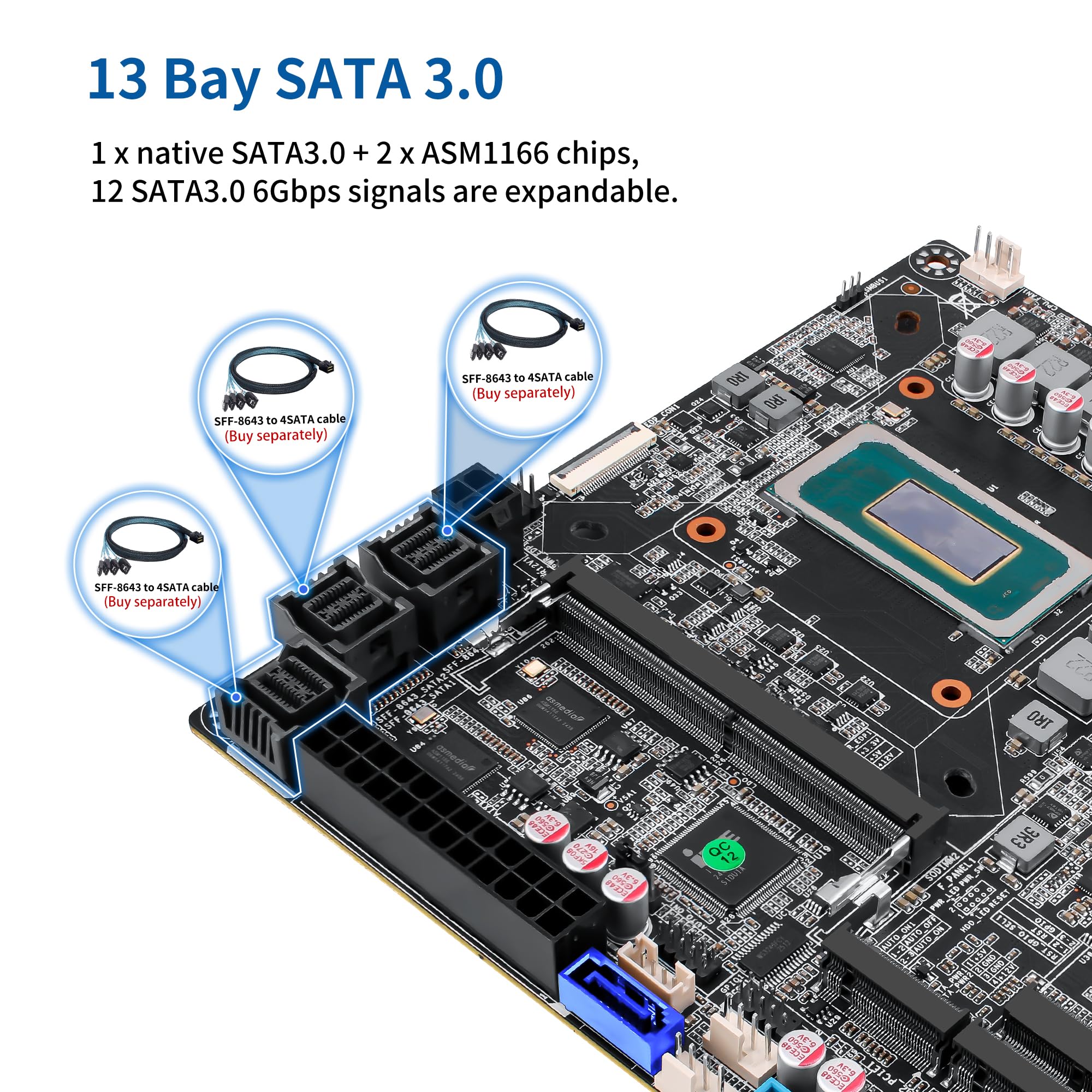

- Massive Storage & Flexible Expansion: This Mini-ITX motherboard comes with dual SO-DIMM DDR5 memory slots (up to 5600MHz, backward compatible with 4800MHz, up to 96GB). It features 3 SFF-8643 ports for expanding up to 12 SATA 3.0 ports via breakout cables. It also includes 2 M.2 NVMe 2280 SSD slots, 1 PCIe x8 slot, 1 TF card slot, and 1 native SATA 3.0 port

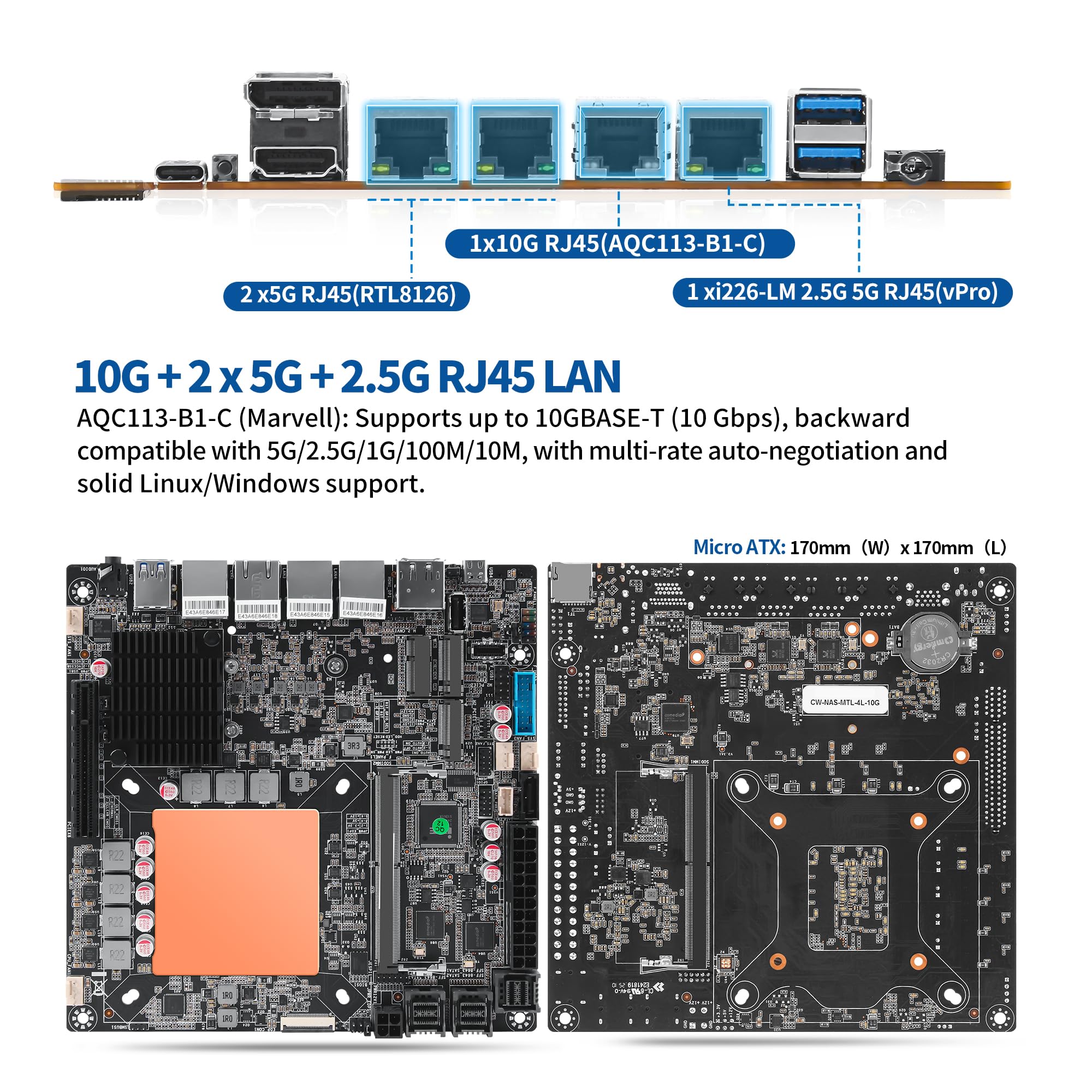

- Multi-rate LAN & Triple Display: The Black Mainboard fitted with AQC113-B1-C 10G RJ45 port with adaptive 1G/2.5G/5G/10G speeds, alongside dual RTL-8126 5G ports and one i226-LM 2.5G port(support vPro). Display output, HD2.0 support 4K@60Hz, DP2.1 and Type-C deliver 8K@60Hz. Idea for multi-monitor workstations and visual edge computing scenarios

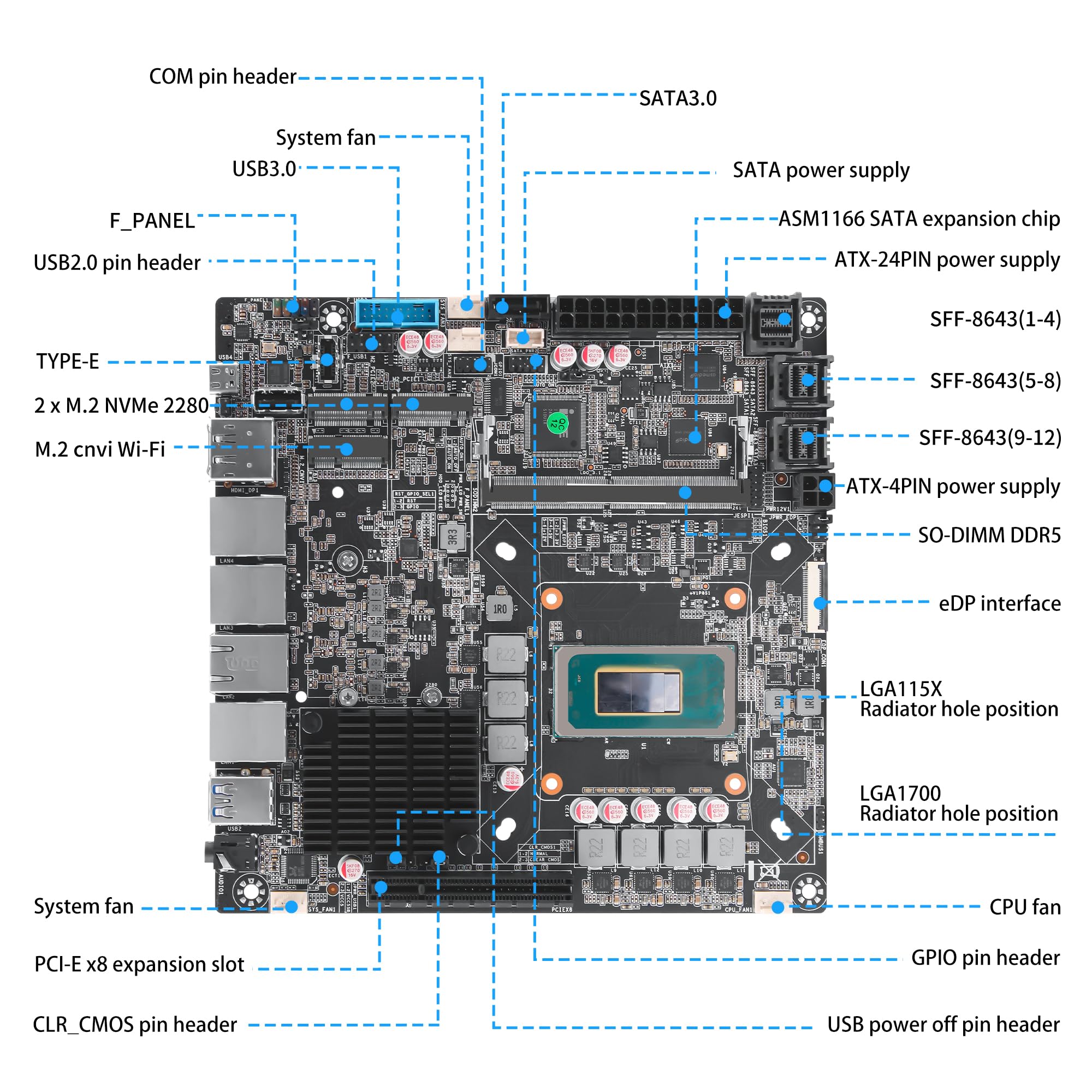

- Rich Connectivity Options: Equipped with 1 x USB4.0 (40Gbps), 2 x USB 3.0 ports, 1xUSB 3.0 Type-A mother base, 1 x Type-E female base, supports wiring to the front panel, 1 x M.2 cnvi WiFi port, 1 x 3.5mm audio port, supporting microphone input and audio output, 1 x GPIO pin header (reserved programmable expansion connector for custom hardware control)
- Motherboard Specs: Features a 17x17cm form factor with a 12-layer high-density, moisture-proof PCB. Offers full protection for all USB, audio, and network interfaces. Requires power supply via ATX 24-pin and ATX 4-pin connectors. Supports LGA115X and LGA1700-series coolers. It only supports UEFI BIOS and is compatible with mainstream open-source NAS systems
